General Information
HBM Simulator used to test devices in compliance with ANSI/ESDA/JEDEC JS-001

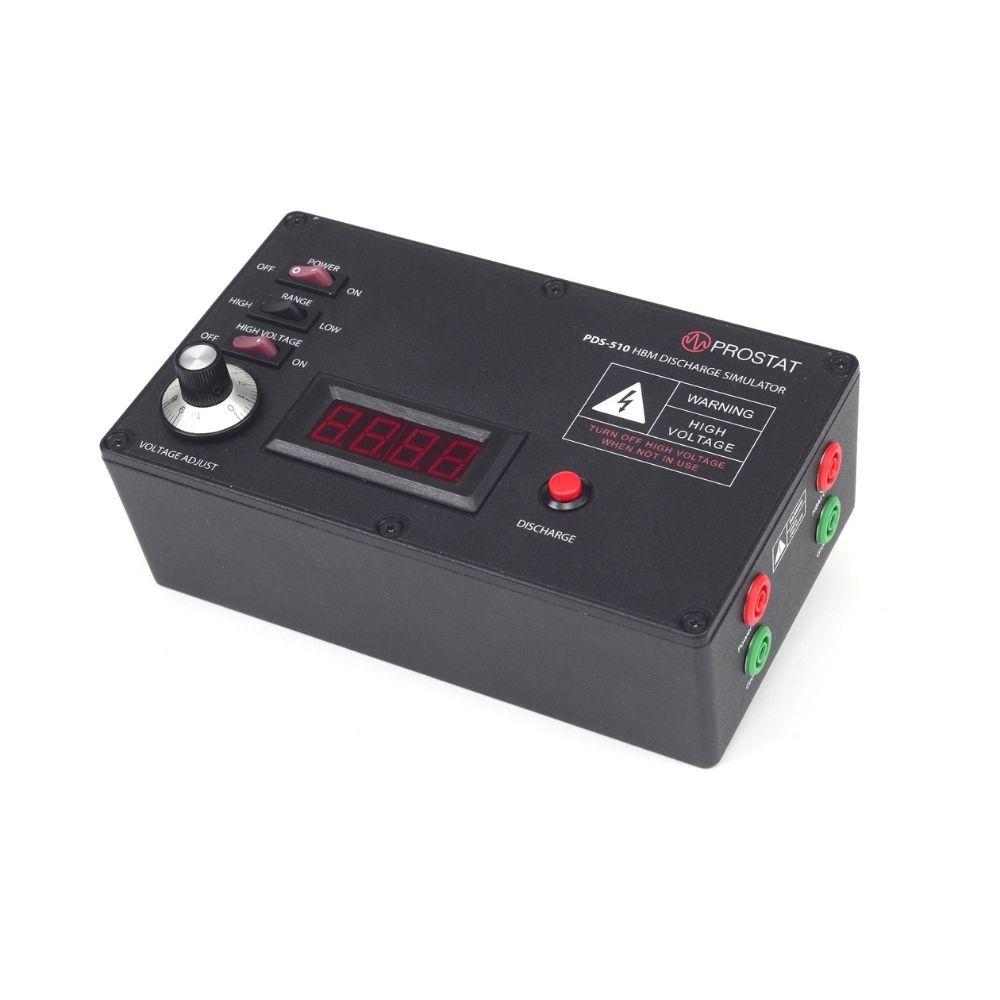

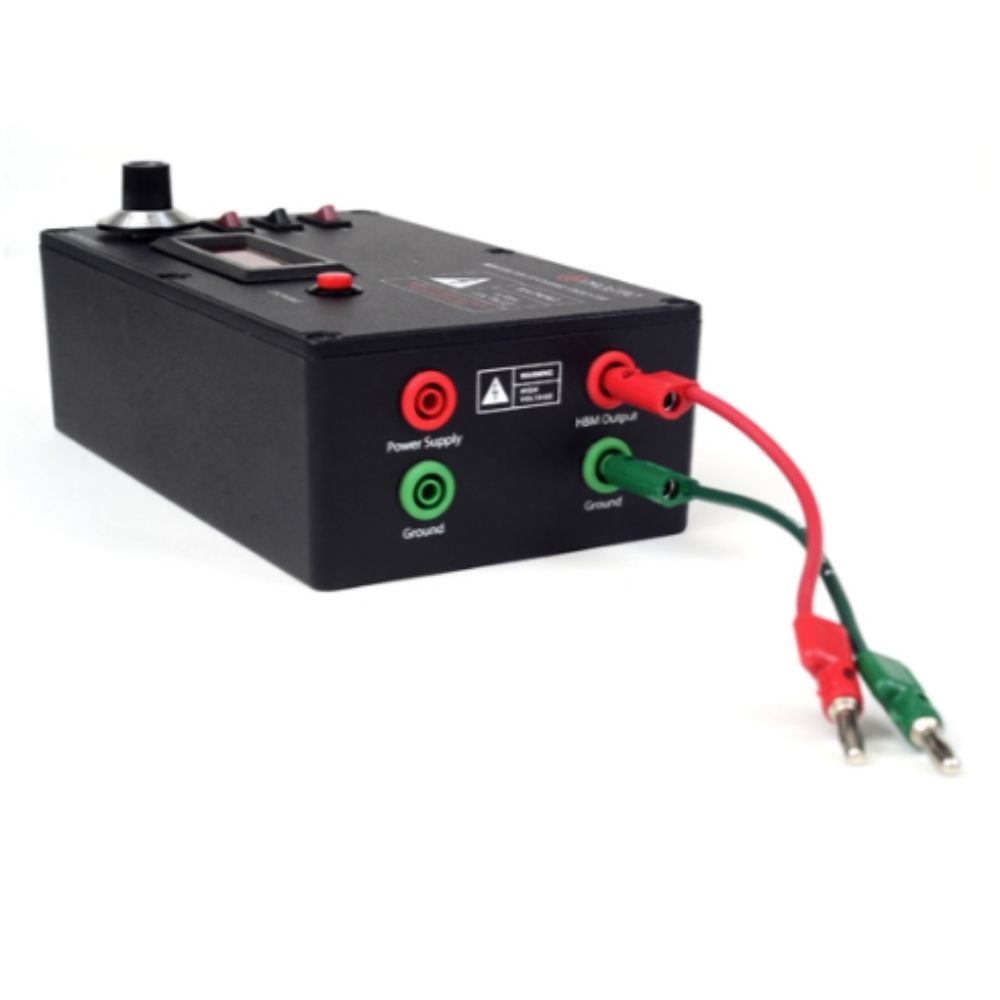

The PDS-510 is a manual two pin tester which means that only two pins at a time can be tested. The user must design a way to connect the PDS-510 to the pins under test. In addition, they must have a way to check for damage to the device either by using a curve tracer or functional tester. HBM data collected using the PDS-510 can be used for data sheet reporting.

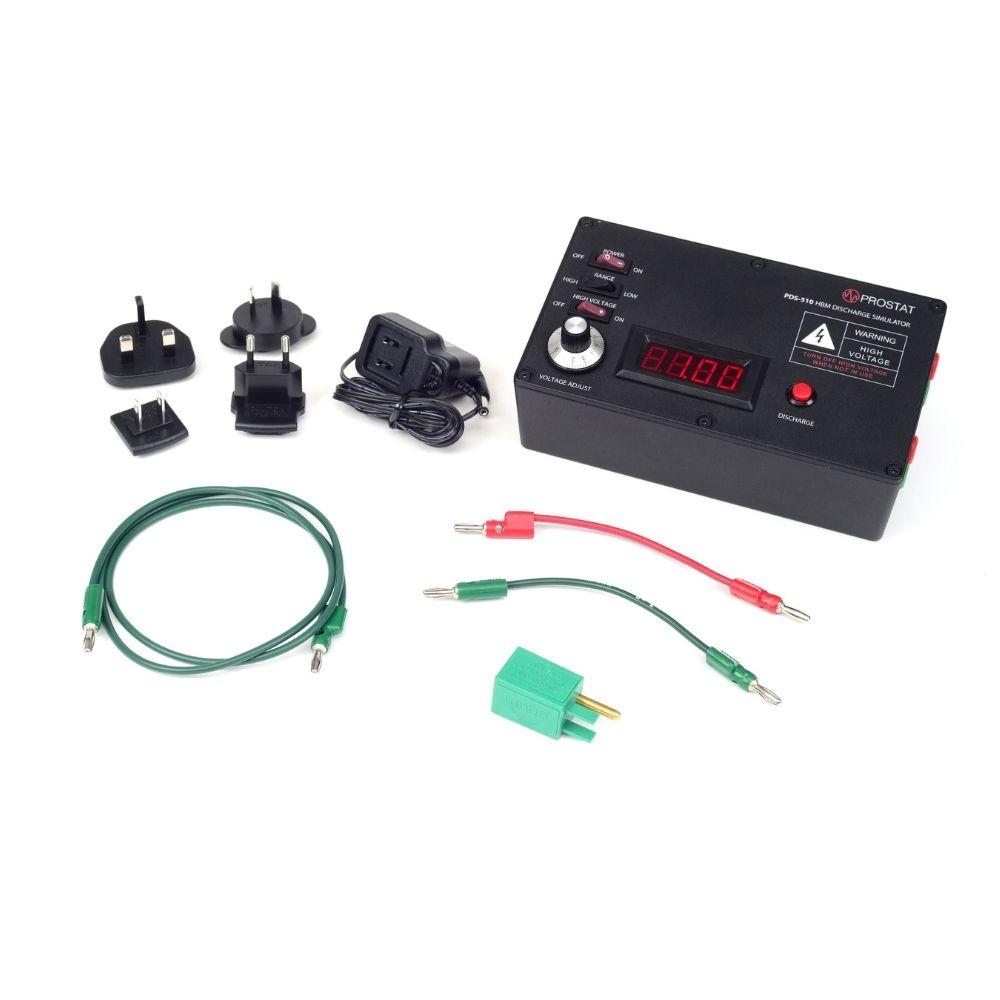

What’s Included:
- PDS-510 HBM Discharge Simulator
- PRF-911GGL 36″ Silicone Test Lead – Green
- 510-053 4″ Lead – Green
- 510-054 4″ Lead – Red
- Q007B Common Point Ground Connector
