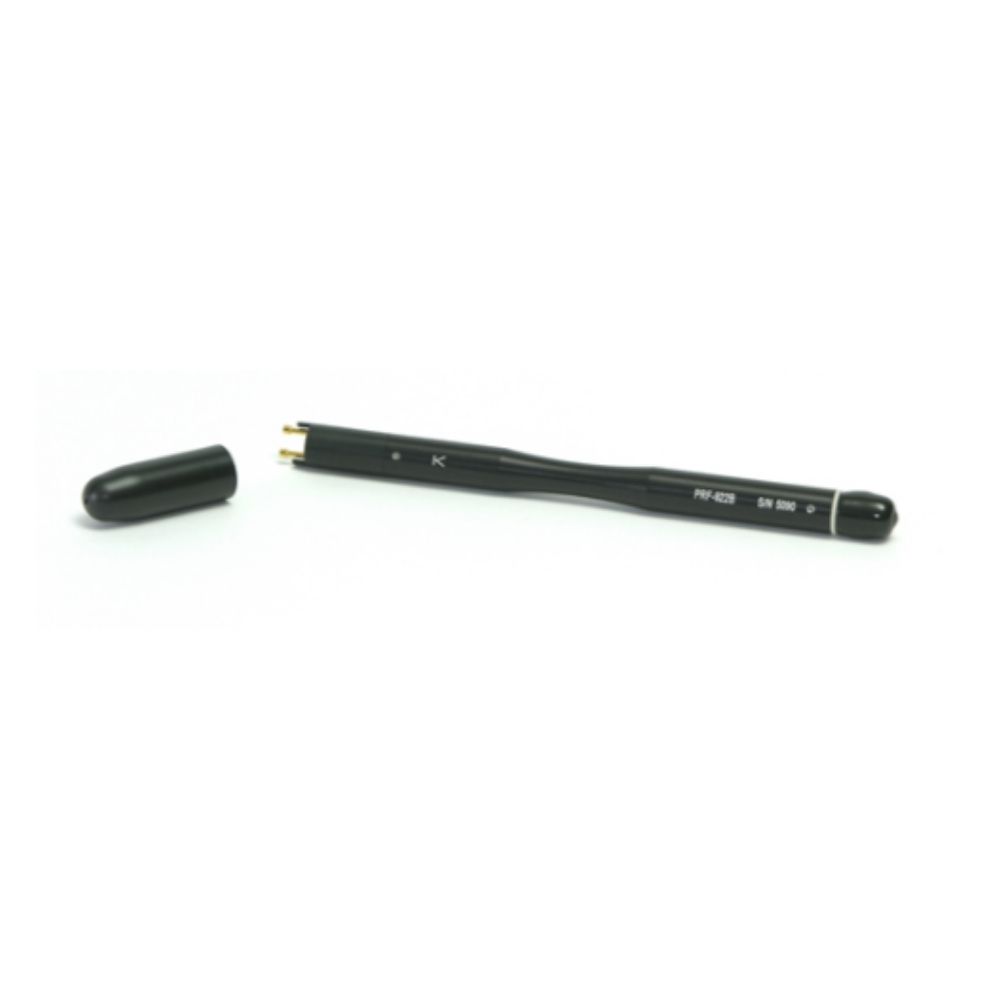

Prostat PRF-922B Miniature Two-Point Probe

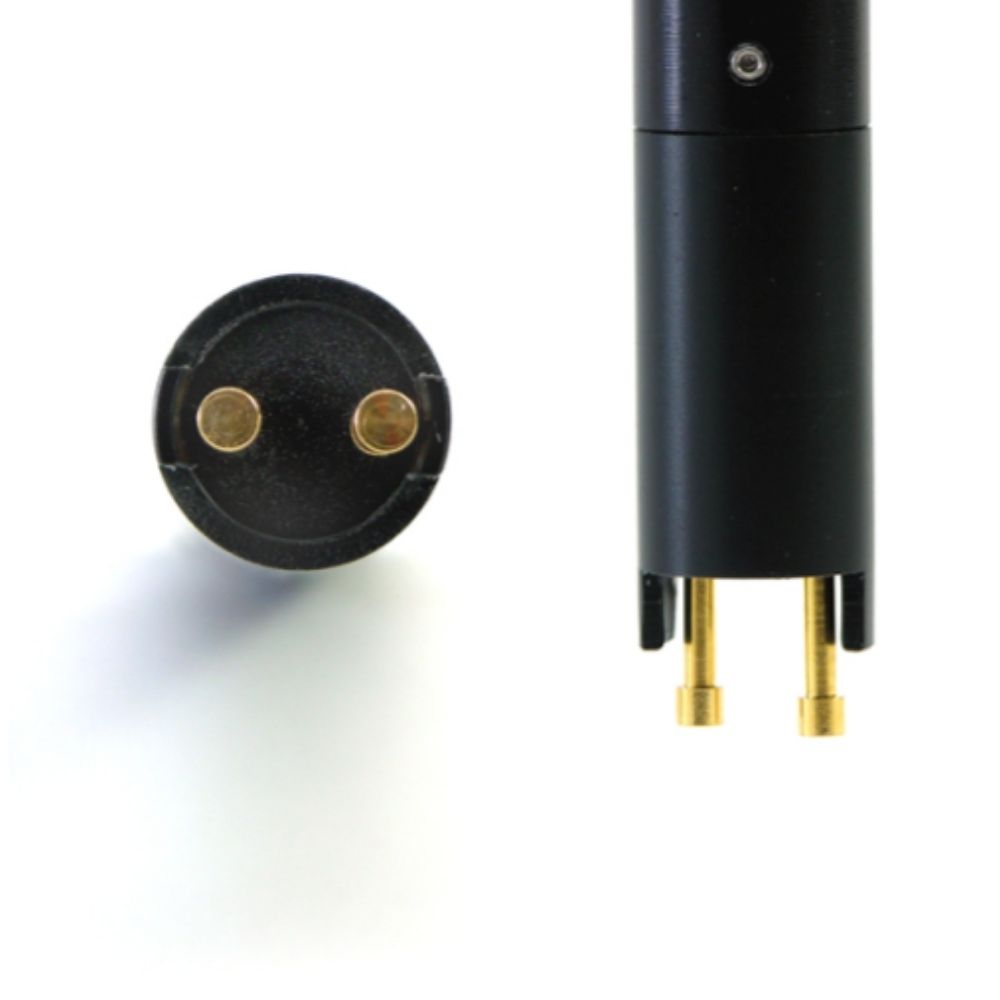

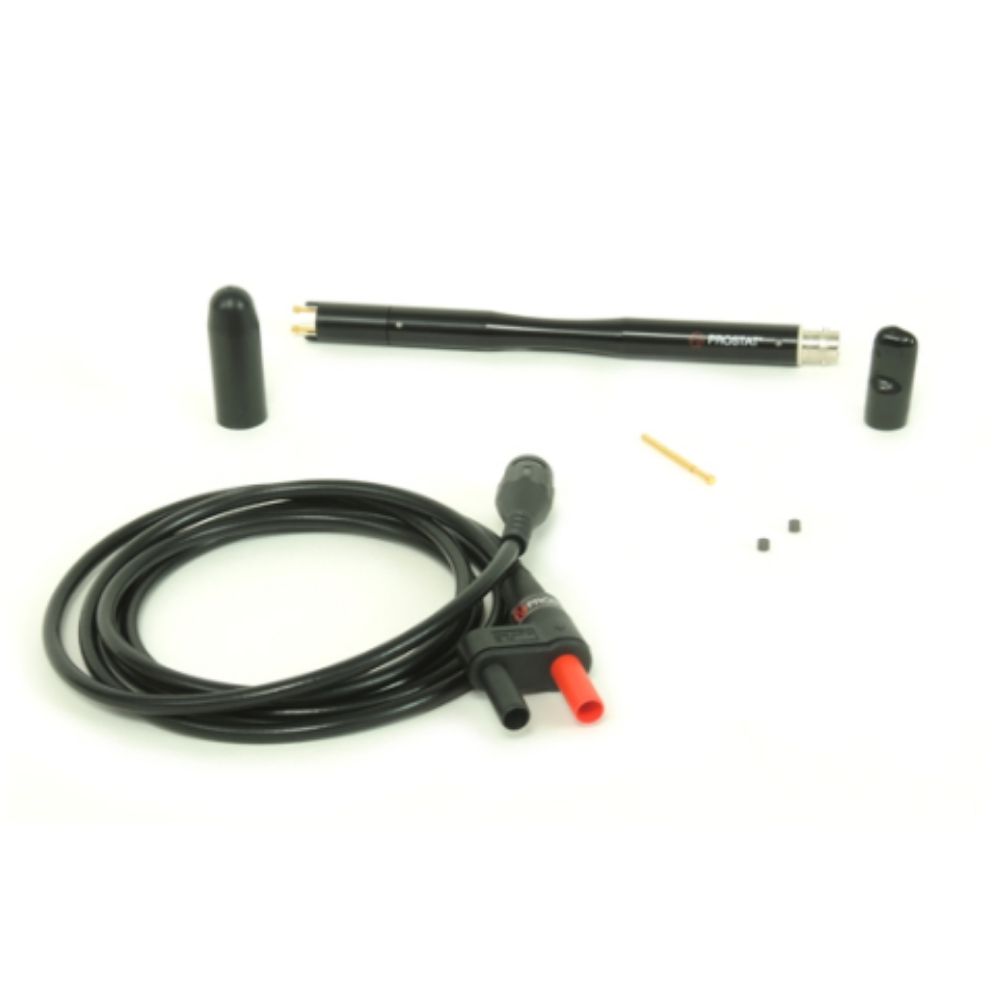

The PRF-922B Miniature Two Point probe accurately measures point-to-point resistance of small areas. Like Prostat’s PRF-912B Miniature Concentric Ring, the PRF-922B is capable of measurements up to 1.0×10¹²ohms. Built-in distance stops provide consistent electrode to sample pressure for developing repeatable measurements. Use the PRF-922B to measure small material samples, hard to assess molded areas, edges of parts, tray or tape cells and other very small objects and surfaces. The assembly is supplied with replaceable conductive electrode covers to enhance contact resistance on irregular surfaces and composition materials. Thus, measurements may be made with either the gold plated electrode contacts, or via conductive rubber covers.
