PRODUCT SPECIFICATIONS
00
01
General Information

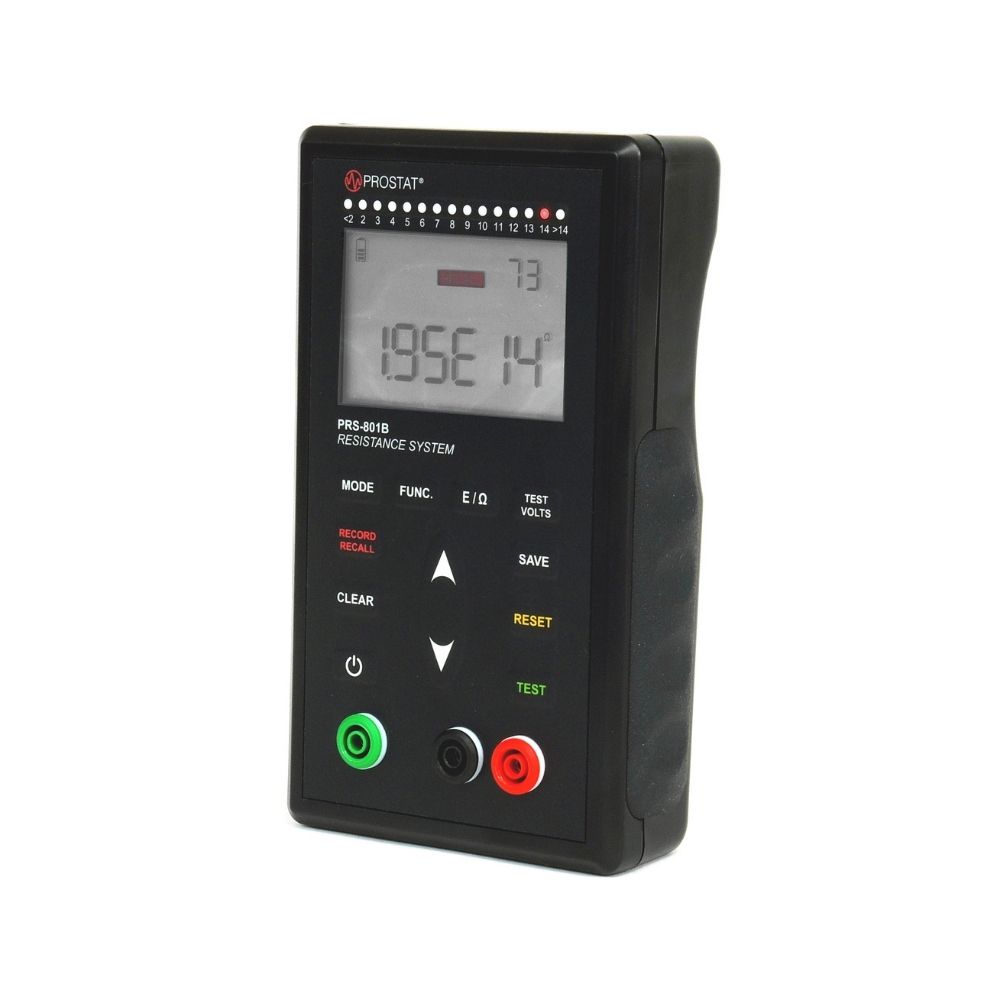

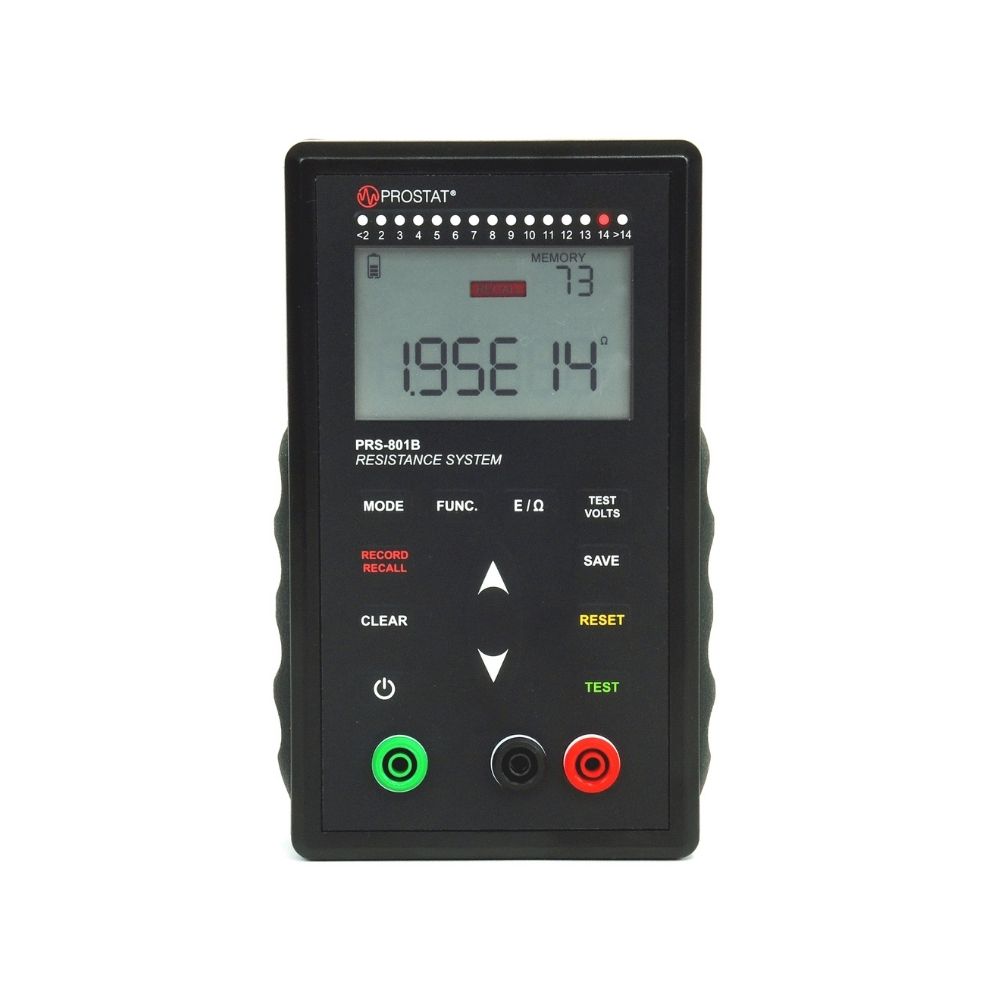

The PRS-801B Resistance System Set is a wide range meter capable of measuring resistance from 0.01 ohm to 2.00E+14 ohms (200 Teraohm). The PRS-801B uses a constant test voltage system that is extremely stable and consistent with lab level, bench top instruments.
Both the PRS-801B and PRS-812B use a Li-ion battery pack, rechargeable via USB. Battery life exceed 480 hours when measuring in Auto-Manual mode and allows you to typically make approximately 8,000 measurements.
Both models include an internal memory capable of storing up to 120 and 999 data sets.
What’s Included:
- PRS-801B Resistance Meter
- 801B-012 Li-ion Bbattery Pack
- 800LB 10 foot Silicone Test Lead – Black
- 800LR 10 foot Silicone Test Lead – Red
- 800PSL Premium Shielded Test Lead
- 800TVL High Resistance Voltage Test Lead
- 800S Test Lead Shunt
- PTB-915 Audit Test Bed
- 800B-001 AC/DC Power Supply
- 800B-002 Micro USB Cable
- RS-801BC Bulldog Clip
- PSI-870MAC Metal Clip (2)
- Connect 2.0 PC Utility Software
